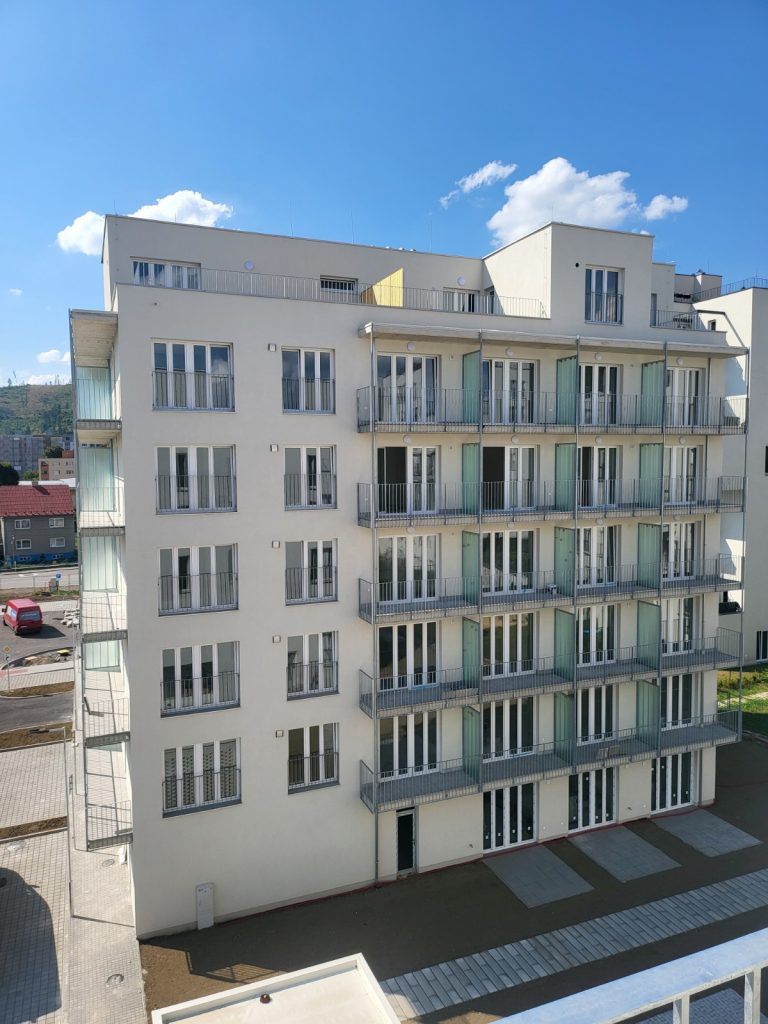

Apartment building

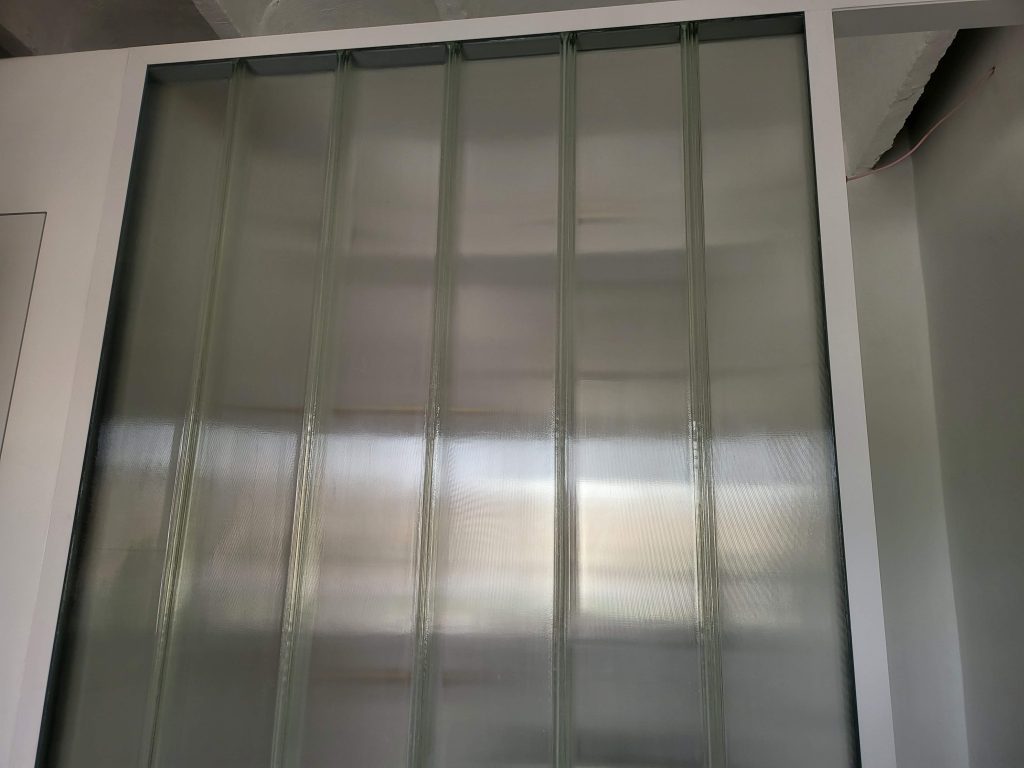

Interior
Religious building

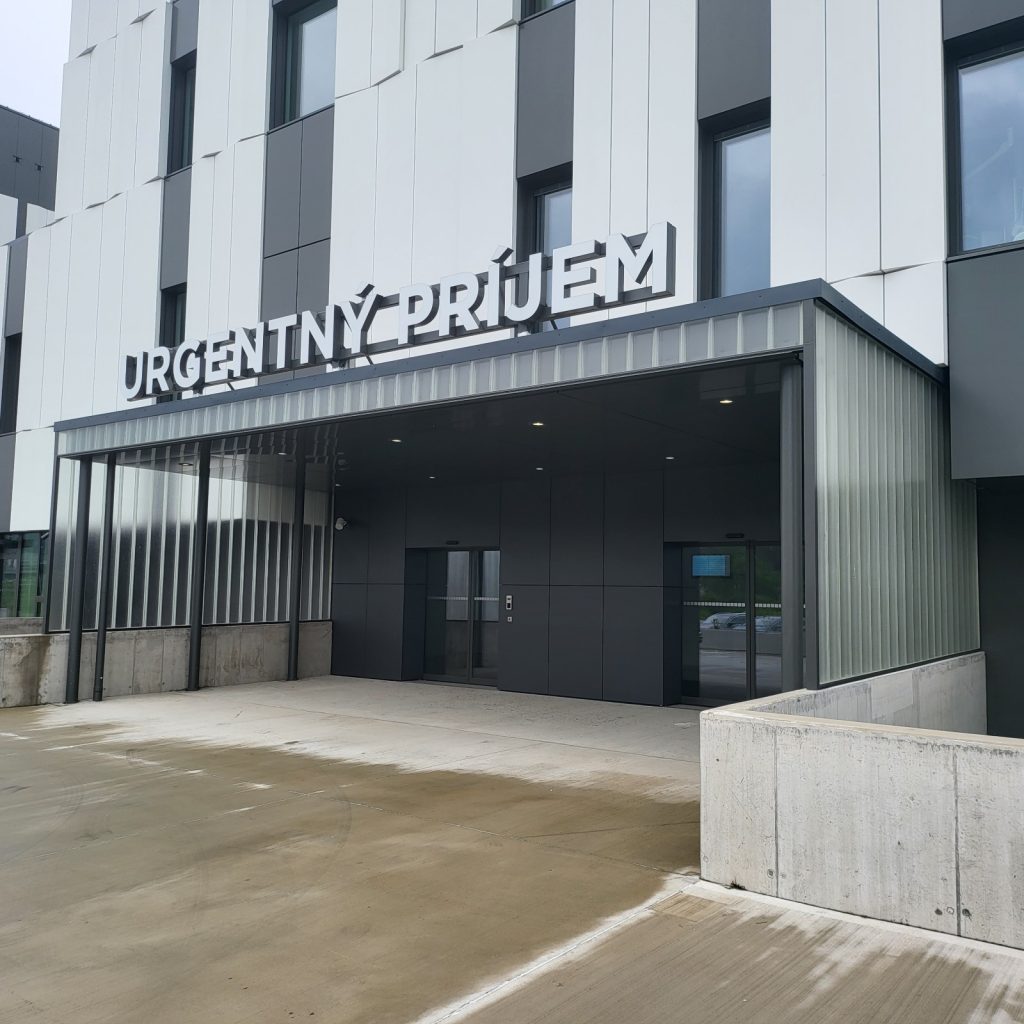

Hospital
And much more...
Slim line opal is the perfect product for... Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor.
Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor. Aenean massa. Cum sociis natoque...
Product catalogue
Apartment building
Interior
Religious building
Hospital
And much more...
Height 41 mm
Thickness 6 mm
Inner width 220 mm
Outer width 232 mm
Max. length 6000 mm
Weight 19.5 kg / m²
Ug = 5.7 W/m²K
G-value = 79%
Light transmission = 86%
Ug = 2.8 W/m²K
G-value = 68%
Light transmission = 75%
Sound insulation = 41db
Ug = 1.8 W/m²K
G-value = 63%
Light transmission = 70%
Sound insulation = 43db
Ug = 1.2 - 1.3 W/m²K
G-value = >30 - 51%
Light transmission = 70%
Sound insulation = 43db
Ug = 0.92 W/m²K
G-value = 31 - 51%
Light transmission = 52%
Sound insulation = 57db
One huge advantage of Pilkington Profilit™ is its fast installation and inexpensive repairment that may be needed in some time in the future. In case of glass damage, only damaged glass panels can be replaced. The system as a whole is designed as a modular system delivered and installed exactly according to the specification.
Glazing Pillkington Profilit™ is primarily designed for exterior designs. The customer has at his disposal a complete system from aluminum construction in various parameters to triple glazing with a used thermal insulation insert. Of course, there are various surface finishings and patterns of glass as well as any RAL shade of aluminum construction.
Yes, indeed. It’s possible to buy an exact model of glass in required length with possible adjustments (hardening, plating, matting, drilling). As we dispose with large stock, your order can be sent in a very short time. In case our current stock is not enough for your order, our usual time to stock up is up to 14 days.
Yes, this type of installation is possible but only if the glazing has radius of at least 2 meters. It’s also possible to create corners with different angles of conjunction.
No, system Pilkington Profilit™ does not have certificate of flame resistance. However, it has many advantages like long channel lengths (up to 7 meters), light transmission, soundproofing or thermal insulation parameters. See product parameters for more information.
The final price is calculated individually and varies on many factors like size of glazing, surface finishing, installation difficulty, location of your project etc. General rule of thumb in pricing is that the larger the glazing, the cheaper the price for one square meter. Please contact us for price calculation or visit our branch where our employees will help you with everything you need.
This is very common situation. In most cases we cut the last glass by its length to center glazing. We cut glasses from both ends until we get the width we need. Glass slats are available in 232, 262, 331 and 498mm.
